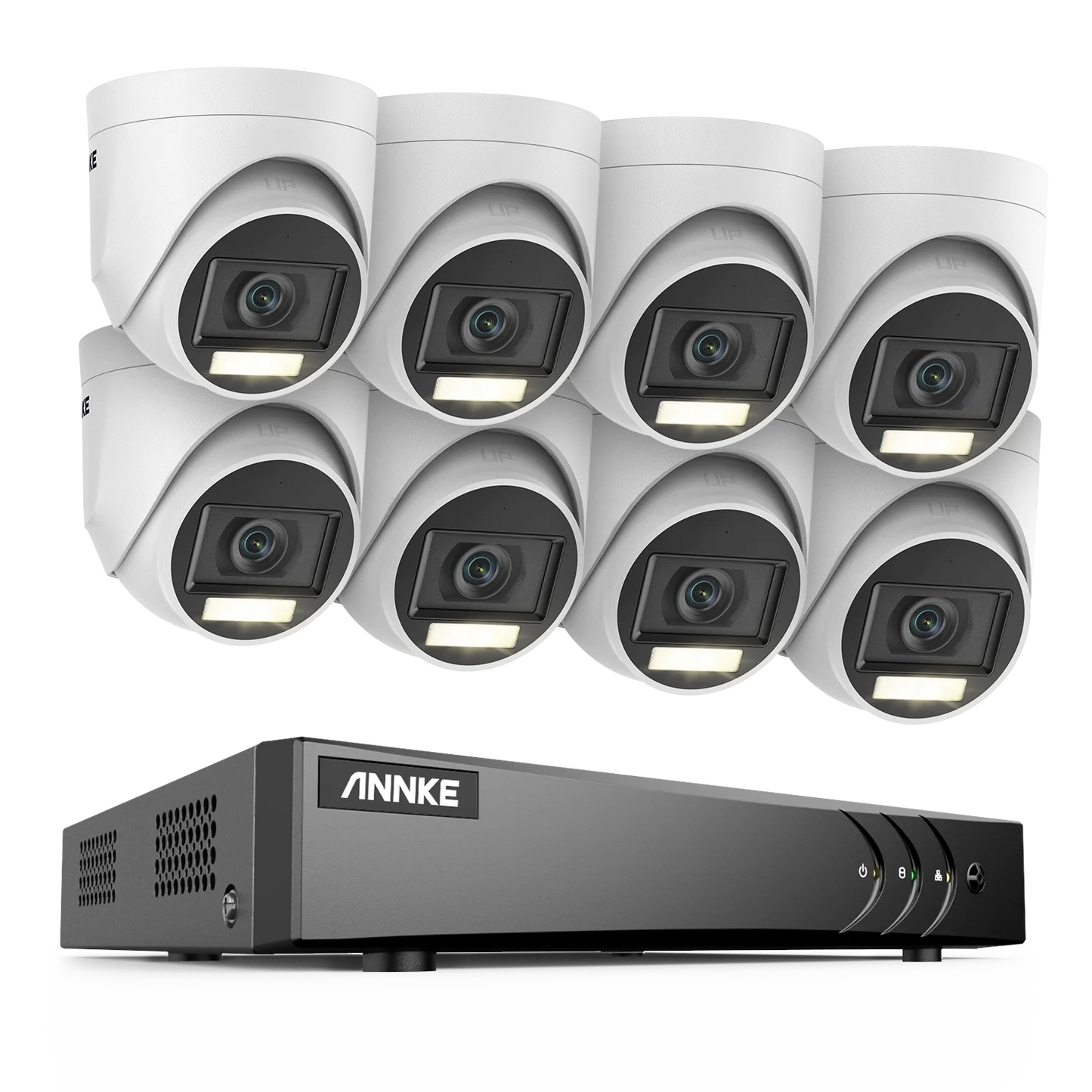

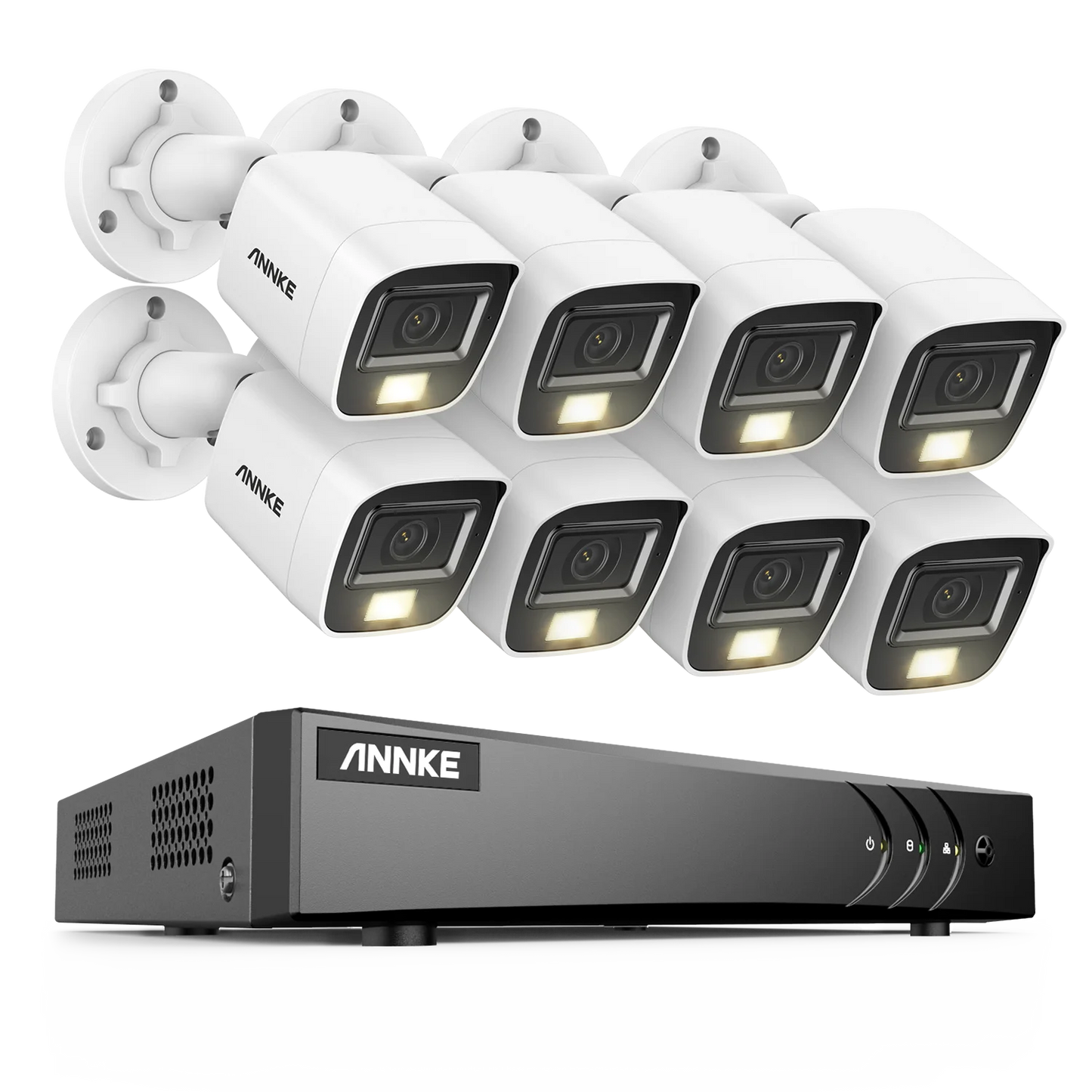

Annke H265 8 Channel 5MP DVR Security Kit 8 Cameras IP67
Annke H265 8 Channel 5MP DVR Security Kit 8 Cameras IP67
Couldn't load pickup availability

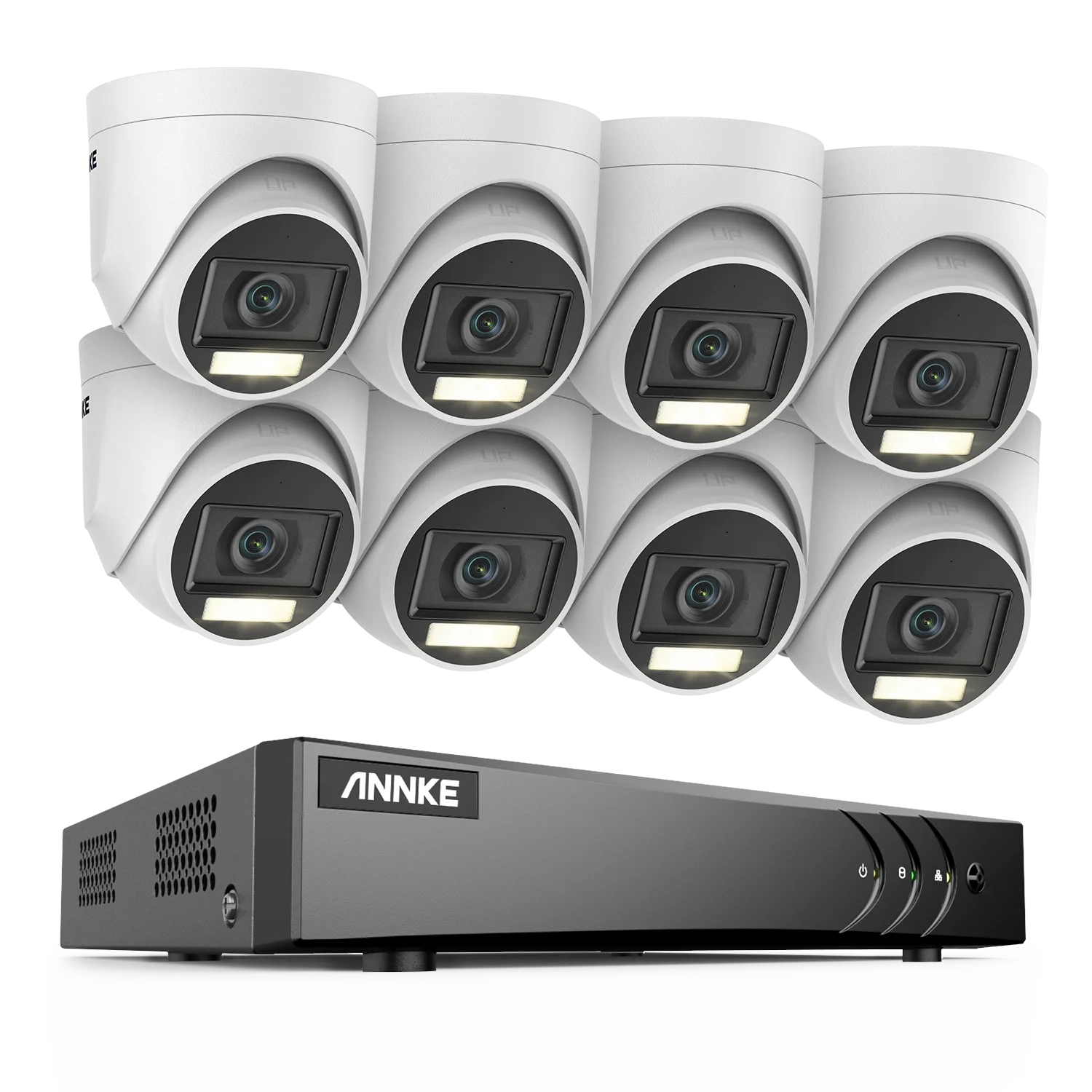

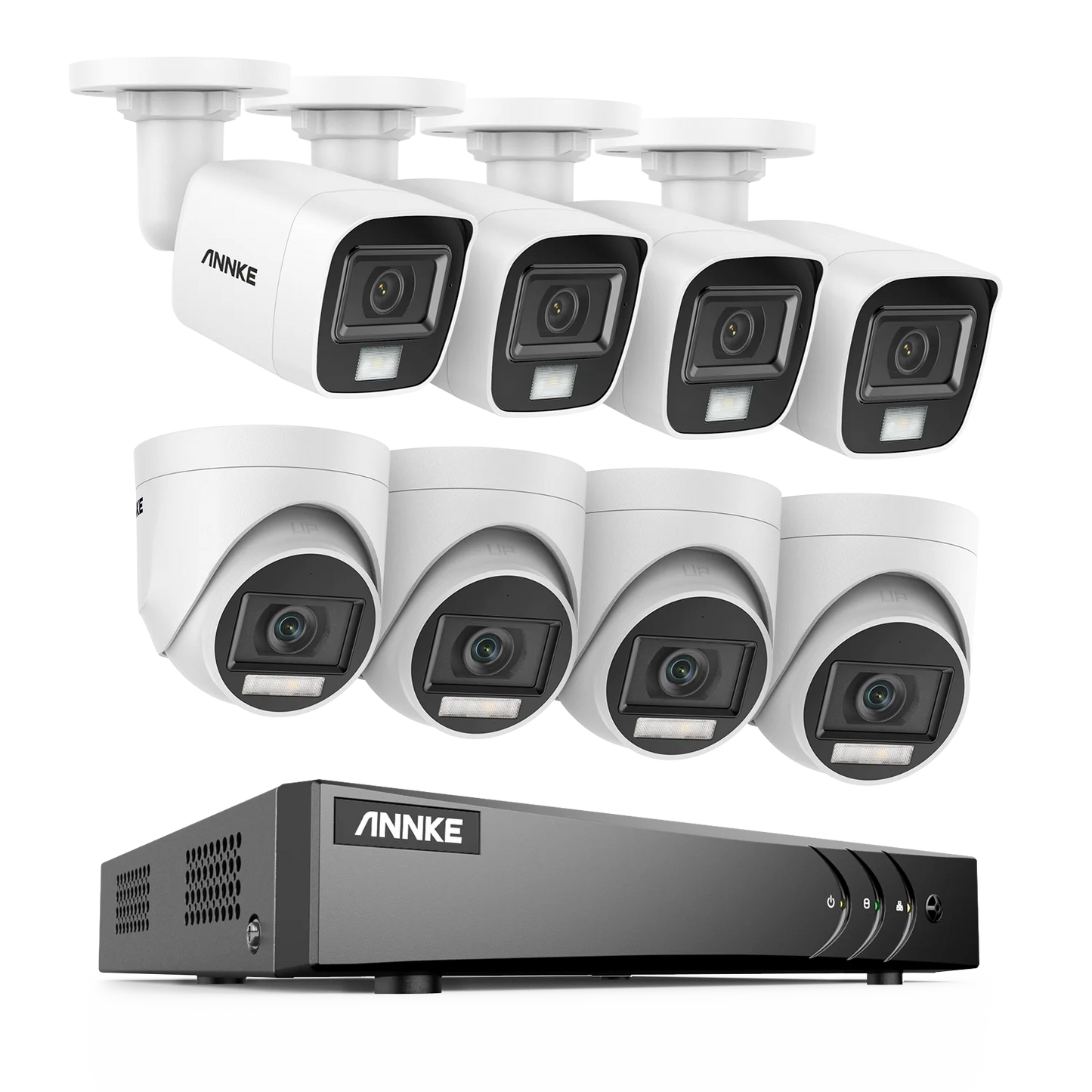

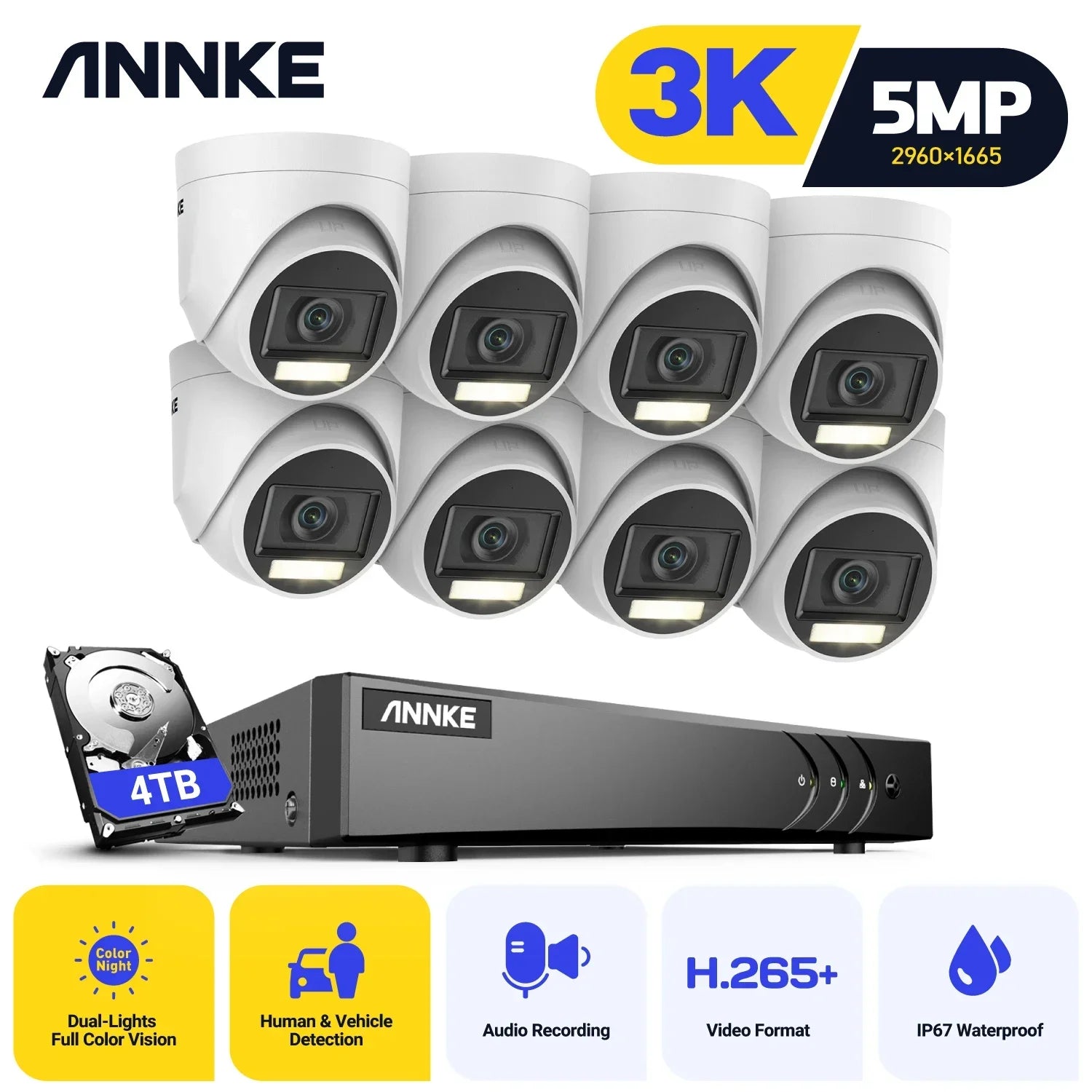

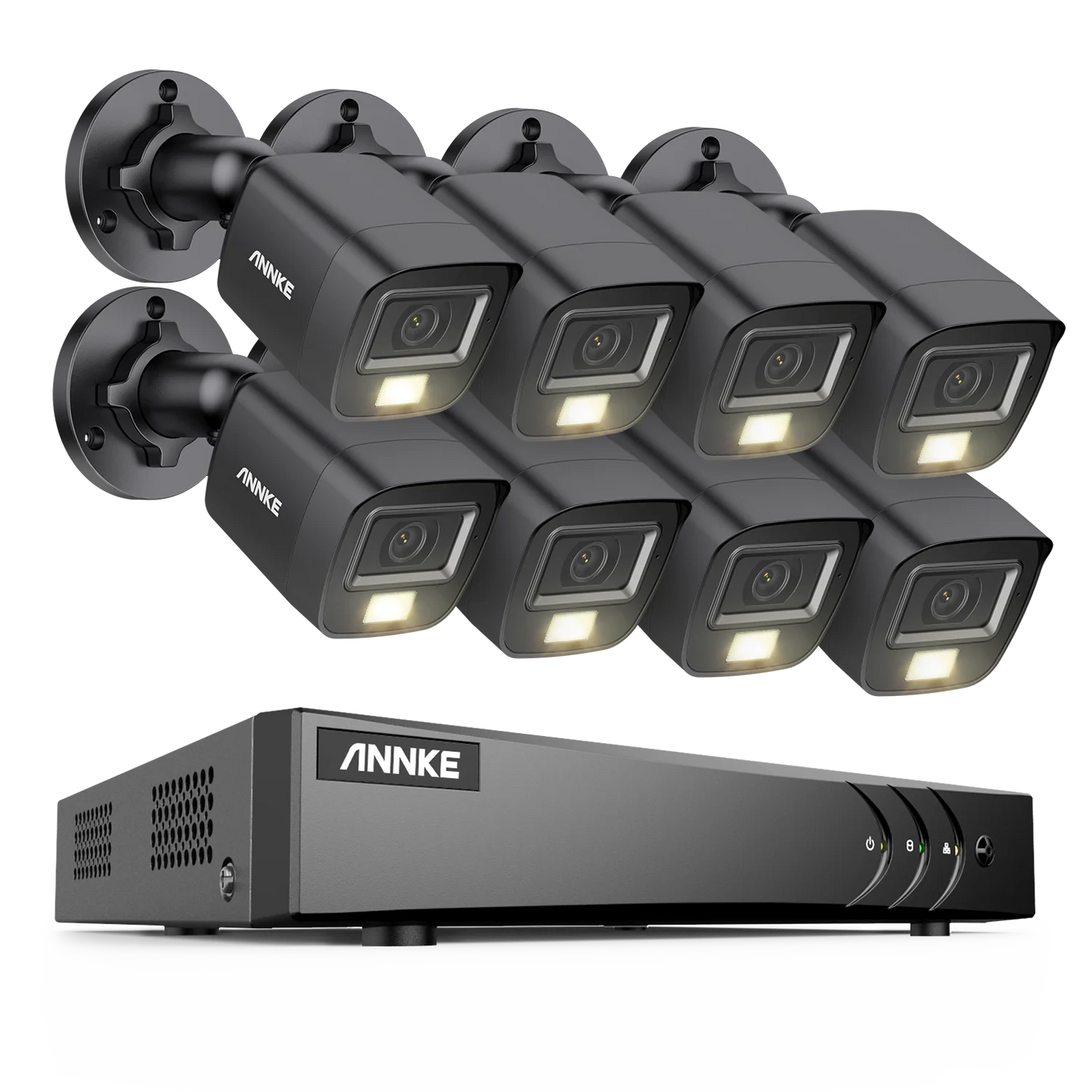

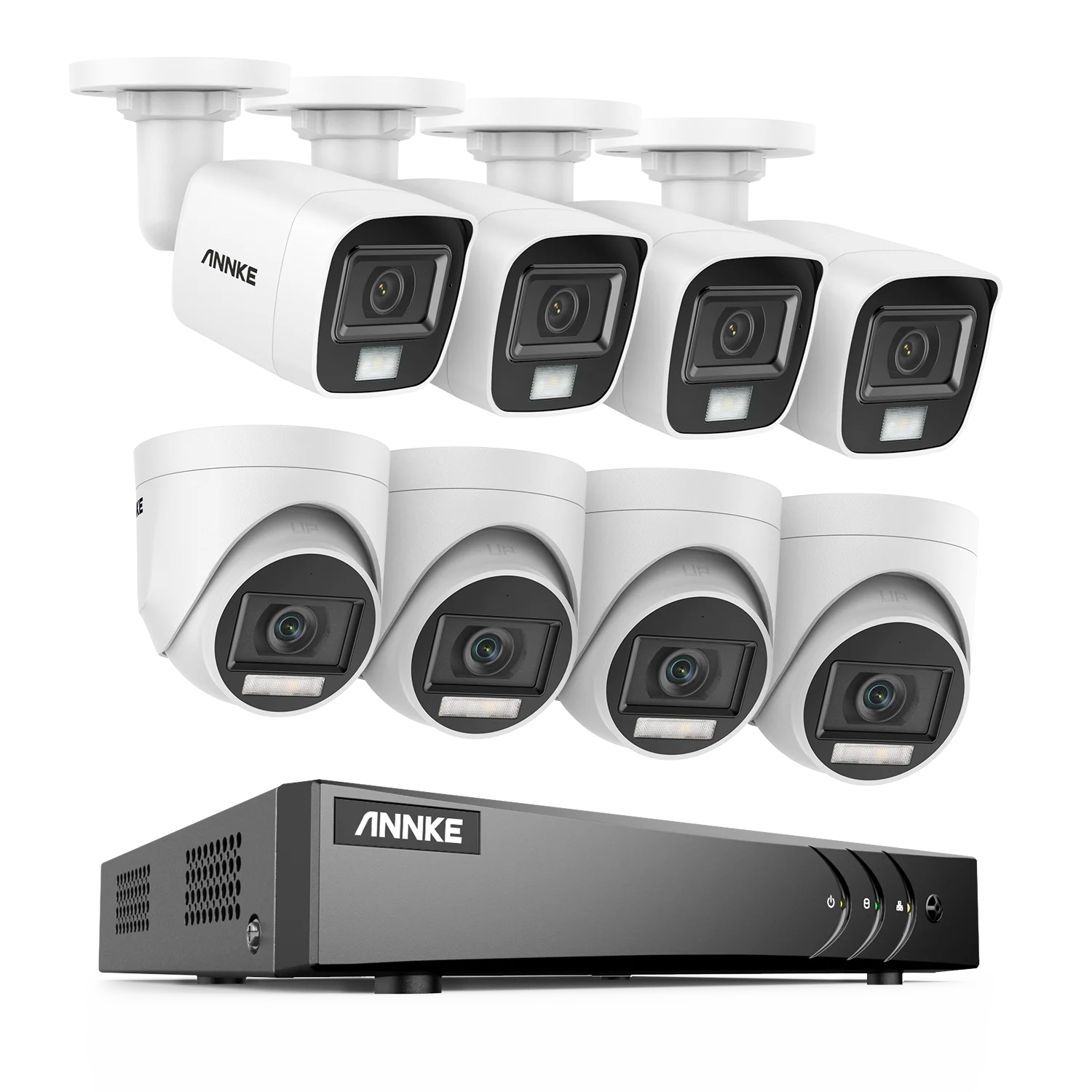

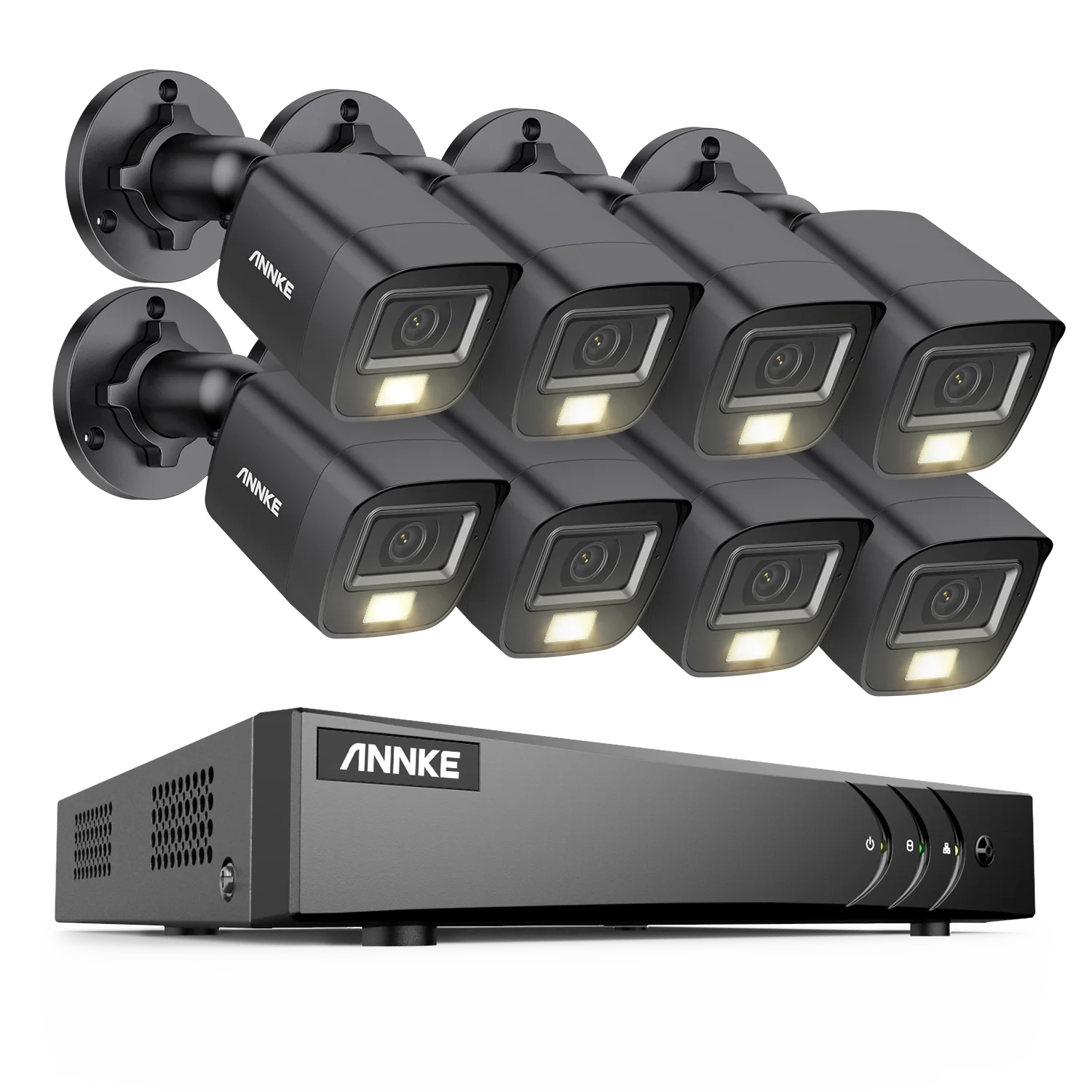

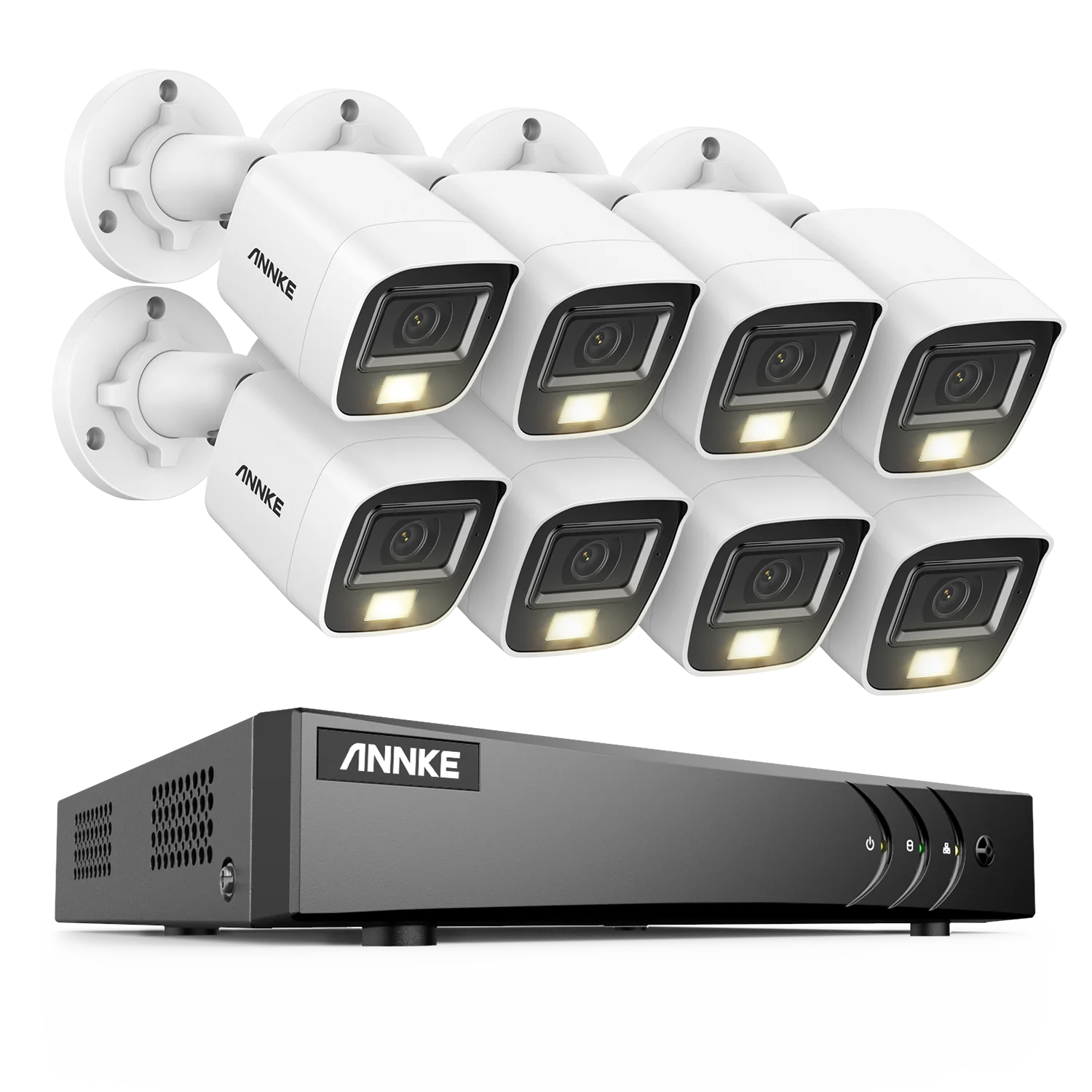

Make security simple with the ANNKE H.265+ 8CH 5MP DVR Security Surveillance Kit. This comprehensive system combines eight 5MP PIR outdoor cameras with a capable 8-channel DVR, designed for reliable monitoring in a variety of outdoor conditions.
With H.265+ compression, the DW81KD0-V3-R8CW DVR delivers crisp video while reducing bandwidth and storage requirements. Each camera uses Passive infrared (PIR) sensors to trigger accurate motion alerts, helping you focus on real events and minimize false alarms.
Key features
- 8-channel DVR for scalable surveillance
- 8 × 5MP PIR outdoor cameras for clear, detailed imagery
- IP67 weatherproof cameras built to withstand rain, dust, and extreme temperatures
- H.265+ Pro+ video compression for efficient recording
- 20 m cable length per camera for flexible installation
- Integrated alarm and motion alert capabilities to notify you quickly
Specifications
- Brand: ANNKE
- Model: DW81KD0-V3-R8CW
- Channel: 8CH
- Resolution: 5MP
- Cameras: 8 × PIR outdoor cameras
- Cable Length: 20 m
- Certification: CE
- Origin: Mainland China
- Smart home platform: None
Ideal for properties seeking reliable, straightforward security, this kit balances high-resolution imagery with practical installation and smart motion detection. Invest in a complete monitoring solution that’s ready to protect your premises.
DVR | ||
Video & Audio |
Video Compression |
H.264+/H.264/H.265/H.265+ |
Video Input |
8CH Analog HD/Analog + 2CH IP Video (up to 12 channel when IP enhanced mode on) |
|
Video Output |
HDMI and VGA Up to 1080P |
|
Audio Input |
1-ch RCA,8-ch via coaxial cable |
|
Audio Output |
1-ch RCA |
|
Supported Camera Types |
Support HD TVI Input: 3K/5MP@20FPS, 4MP, 3MP, 1080p, 720p; |
|
Analog HD Playback Resolution |
3K Lite/5MP Lite/4MP Lite@12fps,1080p/720p@15fps |
|
IPC Playback Resolution |
Up to 6MP |
|
Max Playback Channel |
2-ch |
|
Protocols |
TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS |
|
Motion Detection 2.0 |
All analog channels support human and vehicle detection to reduce false alarm |
|
Hard Drive |
HDD |
1 SATA interface |
HDD Capacity |
Up to 10TB capacity |
|
External Interface |
Network interface |
1, RJ45 10M/100M self-adaptive Ethernet interface |
USB |
USB2.0x2 |
|
General |
Operating Power |
DC12V,≤ 12W (without HDD) |
Working Temperature |
-14 °F – 131 °F /-10 °C – 55 °C |
|
Dimensions(W x H x D) |
260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch) |
|
Weight (without hard disk) |
≤ 1 kg (2.2 lb)(without HDD) |
|
Analog HD Camera | ||
Camera |
Image sensor |
3K CMOS Image sensor |
Video Resolution |
2960 (H) × 1665 (V)(16:9) |
|
Signal System |
PAL/NTSC |
|
Frame Rate |
TVI: 3K@20 fps, 4 MP@25 fps/30 fps, 1080p@25 fps/30 fps |
|
Lens |
2.8mm |
|
Min.Illumination |
Color:0.01 Lux @ (F1.2,AGC ON),0 Lux with IR |
|
Angle of View |
Horizontal FOV: 107°, vertical FOV: 64°, diagonal FOV: 129° |
|

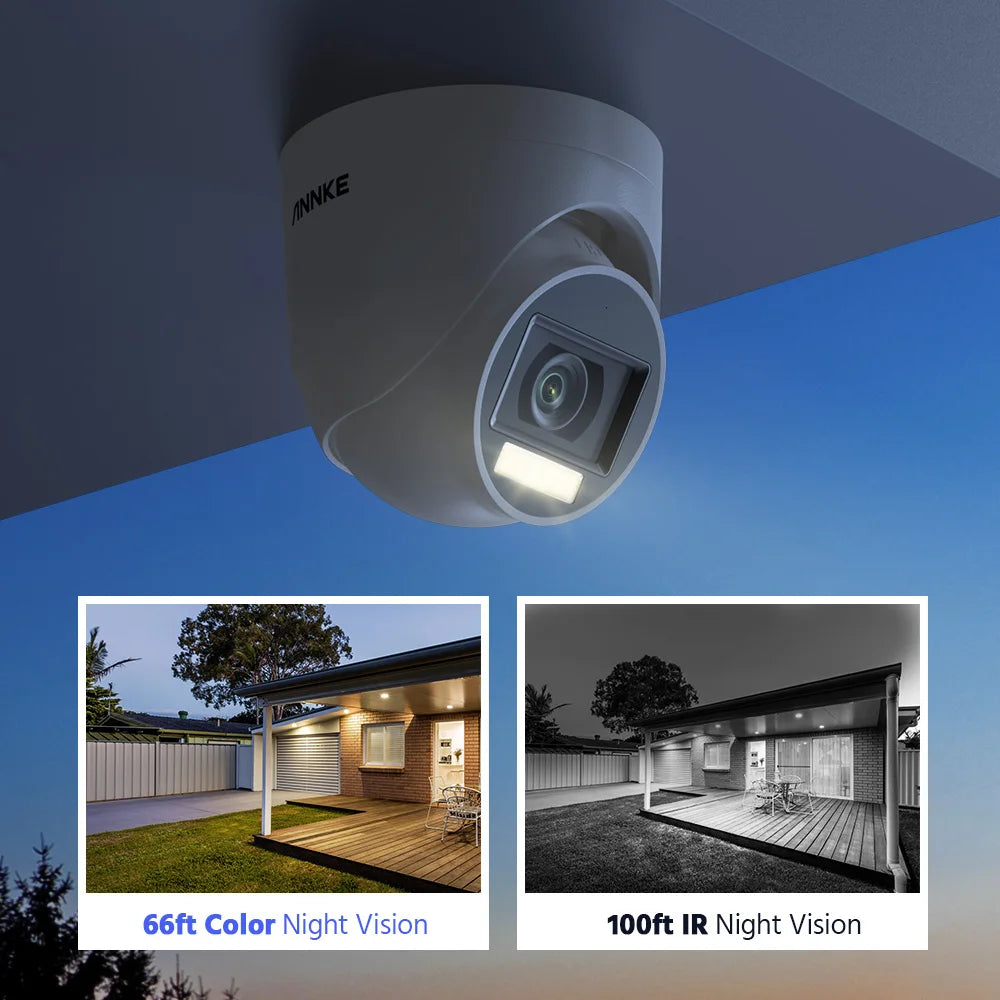

Supplement Light type |
1 white Light & 1 EXIR |
|
Supplement Light Range |
IR: Up to 30 m, white Light: Up to 20 m |
|
Supplement Light Mode |
IR light works normally, and it switches to white light when human or vehicle are detected at night. |
|
Wide Dynamic Range |
Digital WDR |
|
Audio |
Built-in mic |
|
IR Cut Filter |
Yes |
|
Video Output |
BNC, switchable TVI/AHD/CVI/CVBS |
|
General |
Housing |
Matal & Plastic |
Color |
White |
|
Operating Power |
12 VDC ± 25% |
|
Consumption |
Max. 2.9 W |
|
Operating Temperature |
-40 °F – 140 °F /-40 °C – 60 °C |
|
Indoor/Outdoor |
Indoor/Outdoor |
|
Weatherproof Rating |
IP67 |
|
Dimension (L x W x H) |
80 mm × Ø 85.1 mm (3.1" × Ø 3.4") |
|
Weight |
Approx. 300 g (0.66 lb.) |
|
