ANNKE 5MP WiFi CCTV System 10 Channel NVR Kit With Audio
ANNKE 5MP WiFi CCTV System 10 Channel NVR Kit With Audio
Couldn't load pickup availability
Introducing the ANNKE 5MP WiFi CCTV System, a 10-channel NVR security kit designed for reliable outdoor surveillance. This bundle includes 4 weatherproof wireless IP cameras and a capable NVR, delivering crisp 5MP video, smooth recording, and easy remote access for homes and small businesses.
Built for simple setup, this real plug-and-play system uses Wi‑Fi for quick installation, avoiding messy cabling while preserving strong signal quality. Two‑way audio lets you communicate with visitors or deter intruders directly from the NVR or connected app.
Smart compression saves storage without sacrificing clarity. The system uses H.264+ video compression to reduce bandwidth and storage needs while maintaining excellent image quality across live viewing, recording, and playback.
Key Benefits
- 5MP Ultra-High Resolution for clear, detail-rich surveillance day and night.
- Wi‑Fi Convenience enables rapid, cable-free setup with reliable remote access.
- Two‑Way Audio enables real-time communication with visitors and deterrence of intruders.
- Outdoor-Grade IP Cameras built to withstand weather for year-round monitoring.
- H.264+ Compression reduces bandwidth and storage requirements without compromising quality.
- Plug‑and‑Play NVR supports up to 10 channels, with 8-channel input for flexible expansion.
What’s Included

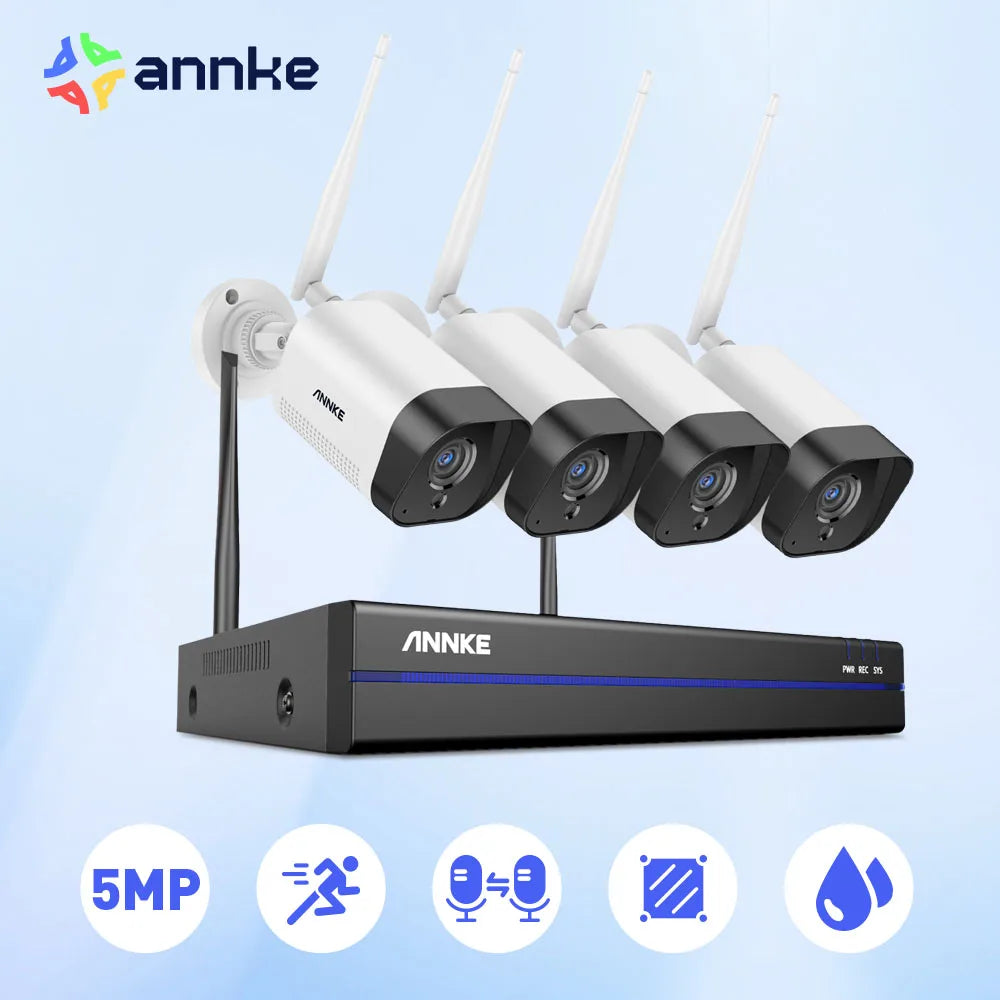

- 4 × wireless IP cameras
- 1 × NVR (10-channel capable)
- Power adapters and cabling as required
- User guide for quick setup and remote viewing
Specifications
Brand: ANNKE
Model Number: N48WHR+54CN
Origin: Mainland China
Resolution: 5 MP
Video System: NTSC, PAL
Video Input: 8 Channel
Key Tech: H.264+ Video Compression
NVR | ||
Video Format |
H.264+ |
|
IP Video Input |
10CH Wireless |
|
Video Output |
HDMI and VGA Up to 1080P |
|
Audio Output |
Support |
|
Max Recording Resolution |
Up to 5M |
|
Max Playback Resolution |
Up to 5M |
|
Max Playback Channel |
4CH |
|
Max Playback Capacity |
4CH 3MP/2CH 5MP |
|
Hard Drive |
HDD |
1 SATA interface |
HDD Capacity |
Up to 10TB capacity(3.5 inches) |
|
|
Network Interface |
RJ45x1(10/100M) |
Wireless antenna |
2 Ports(IEEE802.11b/g/n) |
|
USB |
USB2.0x1 |
|
General |
Housing |
Metal for mainpart |
Operating Power |
DC12V |
|
Power Consumption |
6 W (Without HDD) |
|
Working Temperature |
14 °F ~ 131 °F/-10 °C ~ 55 °C |
|
Dimensions (W X H X D) |
260 X 245 X 47 mm |
|
Weight (Without Hard Disk) |
760 g (Without HDD) |
|
IP Camera | ||
Camera |
Video Resolution |
5MP (2880 X 1624) |
Image Sensor |
1/2.8" Progressive Scan CMOS |
|
Video Compression |
H.264+ |
|
Audio Compression |
G.711A |
|
Lens |
3.6mm |
|
Angle of View |
70° |
|
Number of Infra-Red LEDs |
18 |
|
Night Vision Distance |
Up to 100ft/30m |
|
IR-Cut Filter |
Yes |
|
Ethernet |
RJ45x1(10M/100M) |
|
Wireless |
IEEE802.11b/g/n |
|
General |
Housing |
Plastic for Main Part |
Operating Power |
DC12V |
|
Operating Temperature |
-4 °F – 140 °F/-20 °C – 60 °C |
|
Indoor/Outdoor |
Indoor/Outdoor |
|
Weatherproof Rating |
IP66 |
|
Dimension (L X W X H) |
||
Weight |
||
